KPI - Tableau

0 votes
HI, I want to show arrows for every increase or decrease of sales and profit from the previous row. Can someone help.

I want to show green up and red down arrows for the increase and decrease.
Jun 17, 2019 in Tableau by prakash
324 views

1 answer to this question.

0 votes

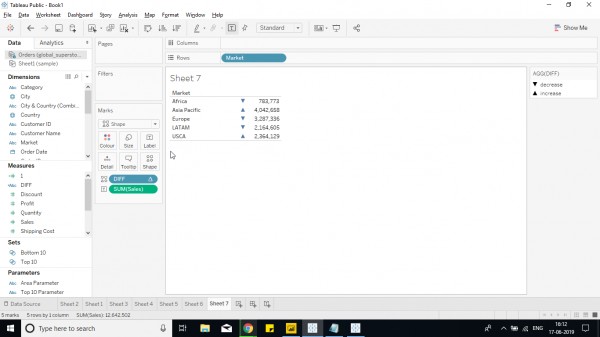

Create a calculated field as below,

IF ZN(SUM([Sales])) - LOOKUP(ZN(SUM([Sales])), -1) >=0 THEN "Increase" ELSE "Decrease" END.

Replace sales by profit for profit KPI similarly.

Drop the above field in shapes shelf and select the respective arrow marks from shape shelf.

answered Jun 17, 2019 by anonymous
• 33,010 points
