How to create a waterfall chart in tableau

0 votes
How to create a waterfall chart in tableau? how to show profit over each month for each category for each year?
Mar 26, 2019 in Tableau by Anitha
359 views

1 answer to this question.

0 votes

Hi,

Follow theses steps:

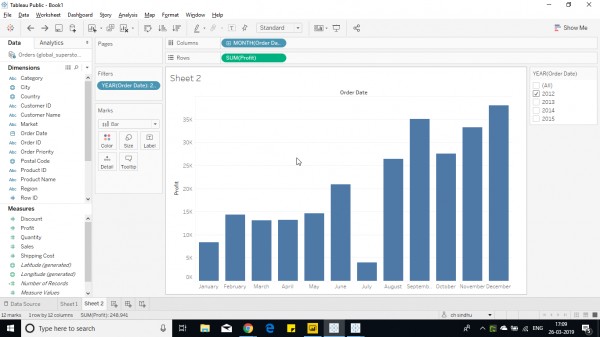

1. Select profit and order date and make a bar chart.

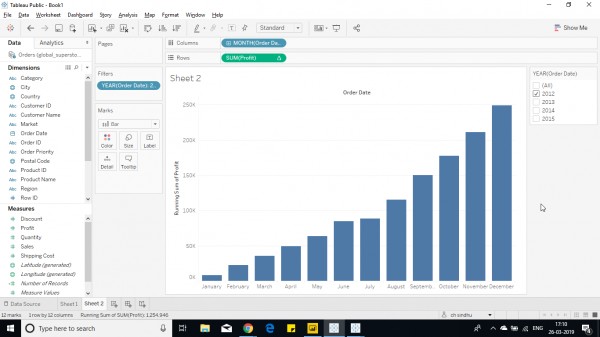

2. Convert profit to running total from quick table calculation, as waterfall model is formed on running totals.

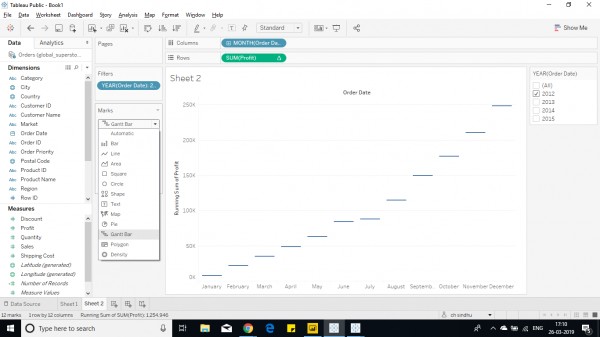

3. Now select Gantt Bar from the Marks pane.

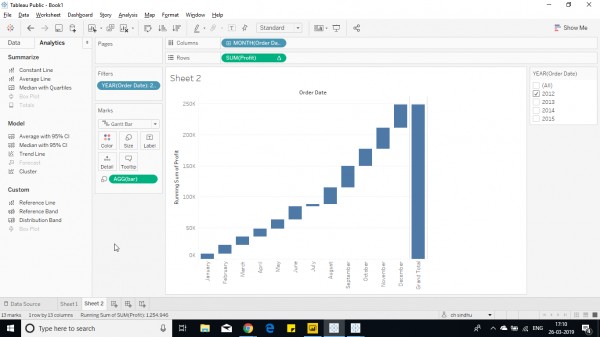

4. Add the grand total from analytics pane.

5. Add a calculated field, to get the bar size of profit for month as -SUM(Profit) and drop it in size shelf to get the size of profit/loss

6. Now add grand total to the chart.

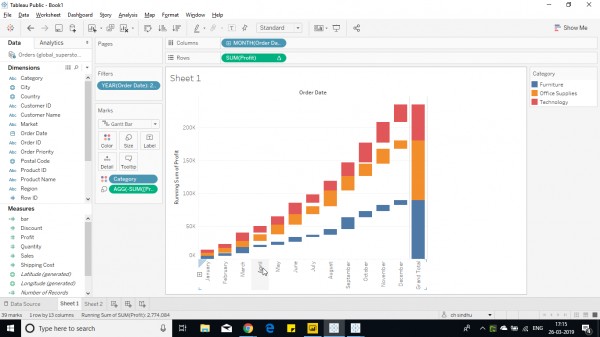

7. Now add the category to color shelf.

Hope this helps you.

answered Mar 26, 2019 by Cherukuri
• 33,010 points
