AWS NAT Gateway Explained: Setup, Benefits & Use Cases

In the ever-evolving landscape of cloud computing, securing your infrastructure while ensuring seamless connectivity is a delicate balance. For businesses leveraging Amazon Web Services (AWS), the AWS NAT Gateway is a crucial component in achieving this balance. But what exactly is it, and why is it so vital for your cloud architecture?

This blog will take you on a journey through the world of AWS NAT Gateways. We’ll define their core purpose, explore the various types, delve into their extensive benefits, break down the pricing structure with exact figures, examine practical use cases, and provide a step-by-step guide to setting them up. Get ready to unlock the power of secure outbound connectivity for your private AWS resources!

What is AWS NAT Gateway?

Imagine you have a highly secure vault where your most sensitive data and applications reside. These applications need to occasionally send messages outside the vault – perhaps to download updates or communicate with external services. However, you absolutely don’t want anyone from the outside initiating contact with your vault. This is precisely the role of an AWS NAT (Network Address Translation) Gateway.

At its core, an AWS NAT Gateway is a managed service that empowers instances within a private subnet to establish outbound connections to the internet or other AWS services, all while preventing direct inbound connections from the internet to those instances. It acts as a clever translator, taking the private IP addresses of your instances and mapping them to its public IP address for outgoing traffic. Think of it as a one-way communication channel, ensuring your internal resources can reach out when needed, without being directly exposed to the vast and sometimes unpredictable internet.

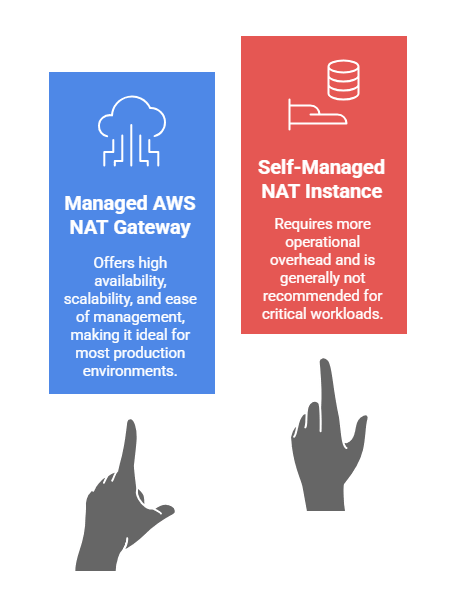

Types Of AWS NAT Gateways

When we talk about “types” of AWS NAT Gateways, it’s less about different models and more about the fundamental choice between a managed service and a self-managed solution.

• Managed AWS NAT Gateway: This is the standard and highly recommended approach for most production environments. AWS handles the entire underlying infrastructure, including scaling, patching, and maintenance. This means you don’t have to worry about provisioning or managing EC2 instances, operating systems, or networking software. It’s a “set it and forget it” solution that offers significant operational benefits. The managed NAT Gateway is designed for high availability within an Availability Zone and automatically scales to handle your traffic needs, ensuring consistent performance even during peak loads.
• Self-Managed NAT Instance: While still an option, this approach involves launching and configuring an EC2 instance to function as a NAT device. This method requires significantly more operational overhead, including managing the EC2 instance, patching the operating system, and configuring routing and security. It’s generally not recommended for critical workloads due to the increased management burden and potential for single points of failure if not properly configured with high availability.

In essence, the managed AWS NAT Gateway offers superior reliability, scalability, and ease of management, making it the preferred choice for virtually all AWS deployments.

Benefits Of AWS NAT Gateway

The adoption of AWS NAT Gateway brings a plethora of advantages to your cloud architecture, making it a cornerstone for secure and efficient operations:

• Enhanced Security Posture: This is arguably the most critical benefit. By allowing only outbound connections from your private instances, the NAT Gateway acts as a robust security barrier, shielding your sensitive resources from direct internet-initiated threats. This significantly reduces your attack surface and helps you adhere to strict security compliance requirements.
• High Availability and Resilience: As a fully managed service, AWS ensures the NAT Gateway is highly available within an Availability Zone. This means if a component fails, AWS automatically reroutes traffic, ensuring continuous connectivity for your private instances. For even greater resilience, you can deploy NAT Gateways in multiple Availability Zones.
• Effortless Scalability: The managed NAT Gateway automatically scales to accommodate your traffic demands, whether you have a handful of instances or thousands. You don’t need to adjust capacity or worry about bottlenecks during traffic spikes manually. This “auto-scaling” capability ensures your applications always have the necessary outbound bandwidth.
• Simplified Management and Reduced Operational Overhead: Say goodbye to patching, updating, or managing the underlying servers. AWS takes care of all the heavy lifting, allowing your team to focus on developing and deploying applications rather than maintaining network infrastructure. This translates to significant time and cost savings.
• Improved Performance and Throughput: AWS has optimized the NAT Gateway service for high performance, delivering better throughput and lower latency compared to self-managed NAT instances. This is crucial for applications that require fast and reliable outbound communication.
• Cost-Effective Shared Public IP: A single NAT Gateway can serve multiple instances within a private subnet, sharing its single public IP address for all outbound communication. This simplifies your network configuration and can be more cost-effective than assigning individual public IPs to each instance.

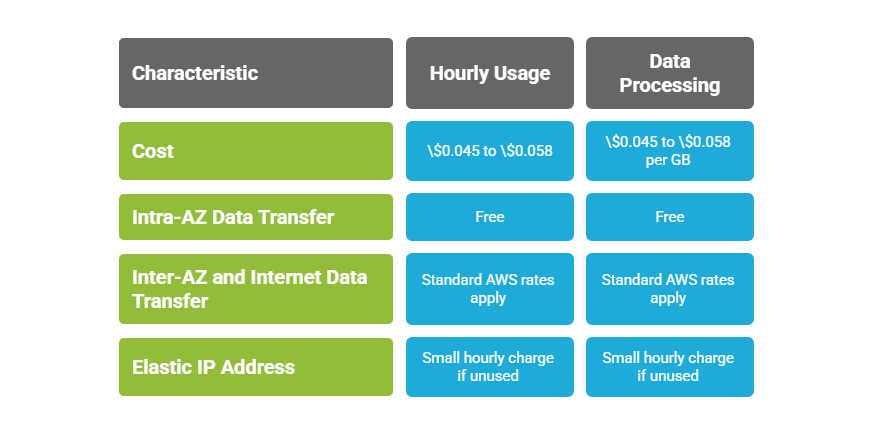

Pricing Of AWS NAT Gateway

Understanding the cost implications of AWS NAT Gateway is essential for budget planning. Pricing is primarily based on two key metrics:

• Hourly Usage Charge: You are charged an hourly rate for each NAT Gateway you provision, regardless of whether it’s actively processing data or not. This charge typically ranges from $0.045 to $0.058 per hour (as of my last update, please refer to the official AWS NAT Gateway pricing page for the most current rates in your region). For example, if you run a NAT Gateway for a full month (730 hours), the cost would be approximately $32.85 to $42.34.
• Data Processing Charge: This charge is incurred for every gigabyte (GB) of data processed through the NAT Gateway. This includes both inbound and outbound data. The data processing charge typically ranges from $0.045 to $0.058 per GB (again, check official AWS pricing for your region). It’s important to consider your expected data transfer volumes when estimating this cost.

Key Cost Considerations:

• Intra-AZ Data Transfer: Data transfer between the NAT Gateway and instances within the same Availability Zone is free. This is a significant cost-saving factor to keep in mind when designing your architecture.
• Inter-AZ and Internet Data Transfer: Standard AWS data transfer rates apply for data moving across Availability Zones or to the internet from the NAT Gateway. These rates vary based on the destination and volume.
• Elastic IP Address Charge: If the Elastic IP address associated with your NAT Gateway is not actively being used, you might incur a small hourly charge. However, when associated with an active NAT Gateway, this charge is typically waived.

By carefully considering your architecture and data transfer patterns, you can effectively manage the costs associated with AWS NAT Gateway.

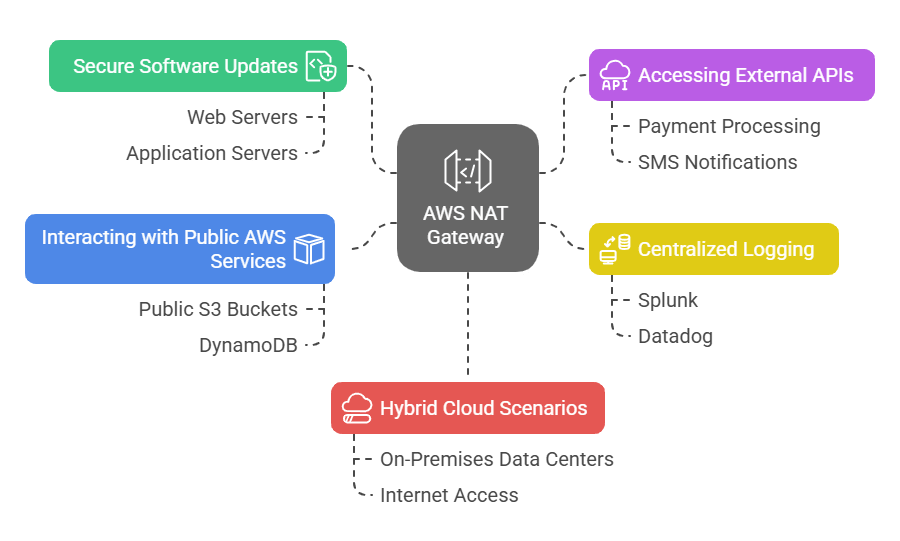

AWS NAT Gateway Use Cases

The versatility of AWS NAT Gateway makes it indispensable for a wide range of cloud deployments. Here are some common and crucial use cases:

• Secure Software Updates for Private Instances: Imagine you have a fleet of web servers or application servers running in private subnets. They need to download operating system updates, security patches, or application dependencies from the internet. The NAT Gateway provides a secure conduit for these updates without exposing your servers directly to the public internet.
• Accessing External APIs and Third-Party Services: Many modern applications rely on external APIs for functionalities like payment processing, SMS notifications, or geographical data. NAT Gateway allows your private instances to securely connect to these external endpoints without compromising their isolation.
• Centralized Logging and Monitoring: Private instances often need to send logs and metrics to external logging services (e.g., Splunk, Datadog) or monitoring platforms. The NAT Gateway enables this outbound communication, ensuring your operational data is collected and analyzed effectively.
• Interacting with Public AWS Services (Outside the VPC): While VPC Endpoints offer private access to many AWS services, some services or specific use cases might still require your private instances to communicate with public endpoints of AWS services (e.g., public S3 buckets, DynamoDB, or SQS queues). The NAT Gateway facilitates this secure communication.
• Hybrid Cloud Scenarios: In hybrid cloud environments where on-premises data centers communicate with AWS, NAT Gateway can play a role in allowing private AWS resources to initiate connections to on-premises resources or the internet via a secure, controlled path.

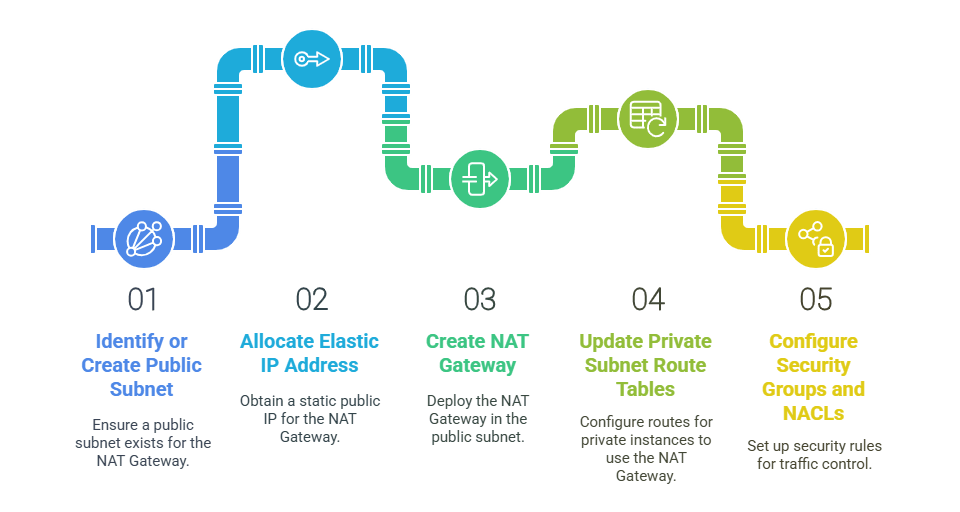

AWS NAT Gateways Setup

Configuring an AWS NAT Gateway is a straightforward process within your Virtual Private Cloud (VPC). Here’s a detailed breakdown of the steps:

1. Identify or Create a Public Subnet: The NAT Gateway itself must reside in a public subnet within your VPC. This is because it requires an associated Elastic IP address, which is a public IPv4 address, to facilitate outbound communication to the internet. If you don’t have a suitable public subnet, you’ll need to create one and ensure its route table has a route to an Internet Gateway.

2. Allocate an Elastic IP Address: Before creating the NAT Gateway, you need to allocate an Elastic IP (EIP) address from the AWS console. An EIP is a static public IPv4 address that you can assign to your NAT Gateway. This ensures a consistent public IP for all outbound traffic from your private instances.

3. Create the NAT Gateway:

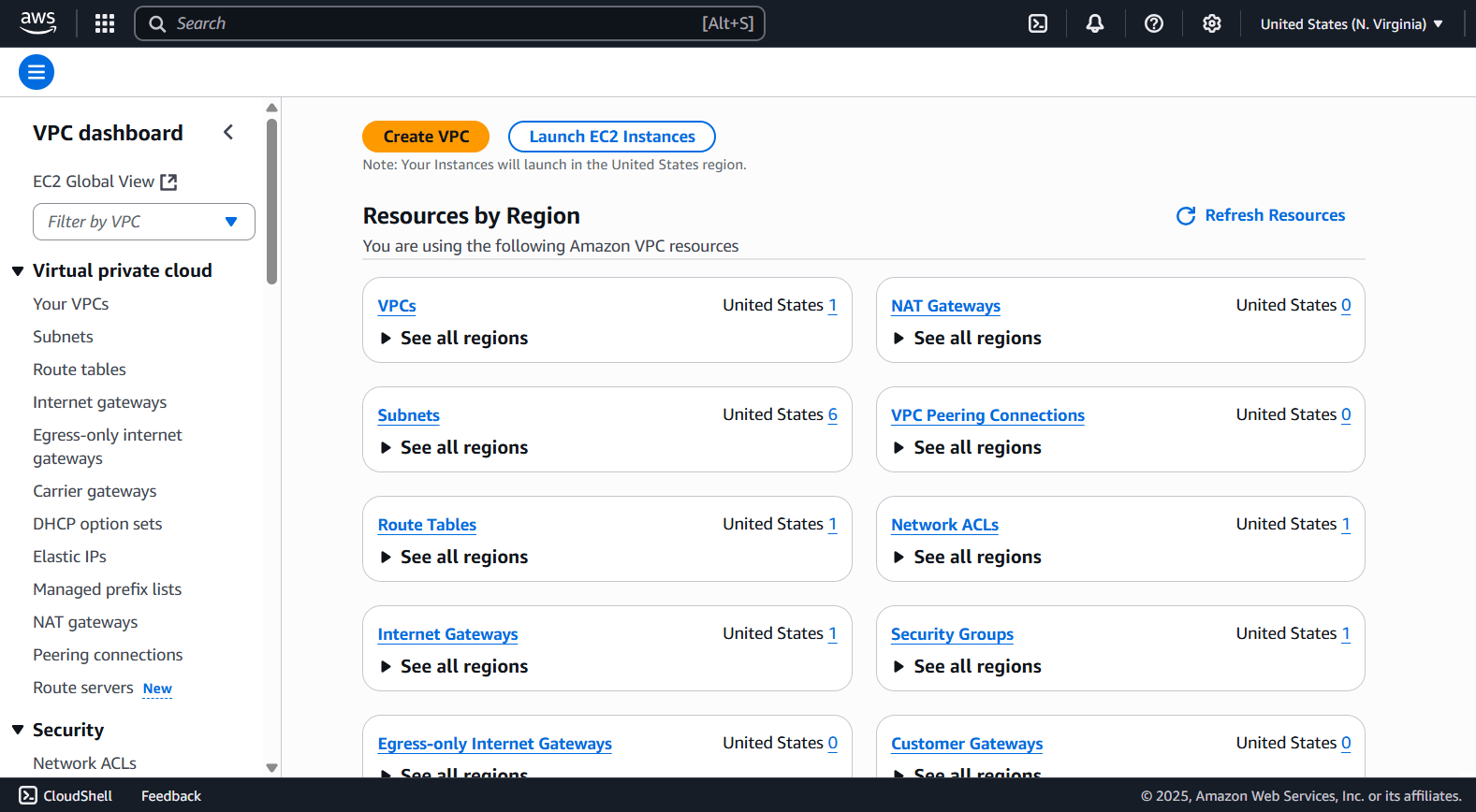

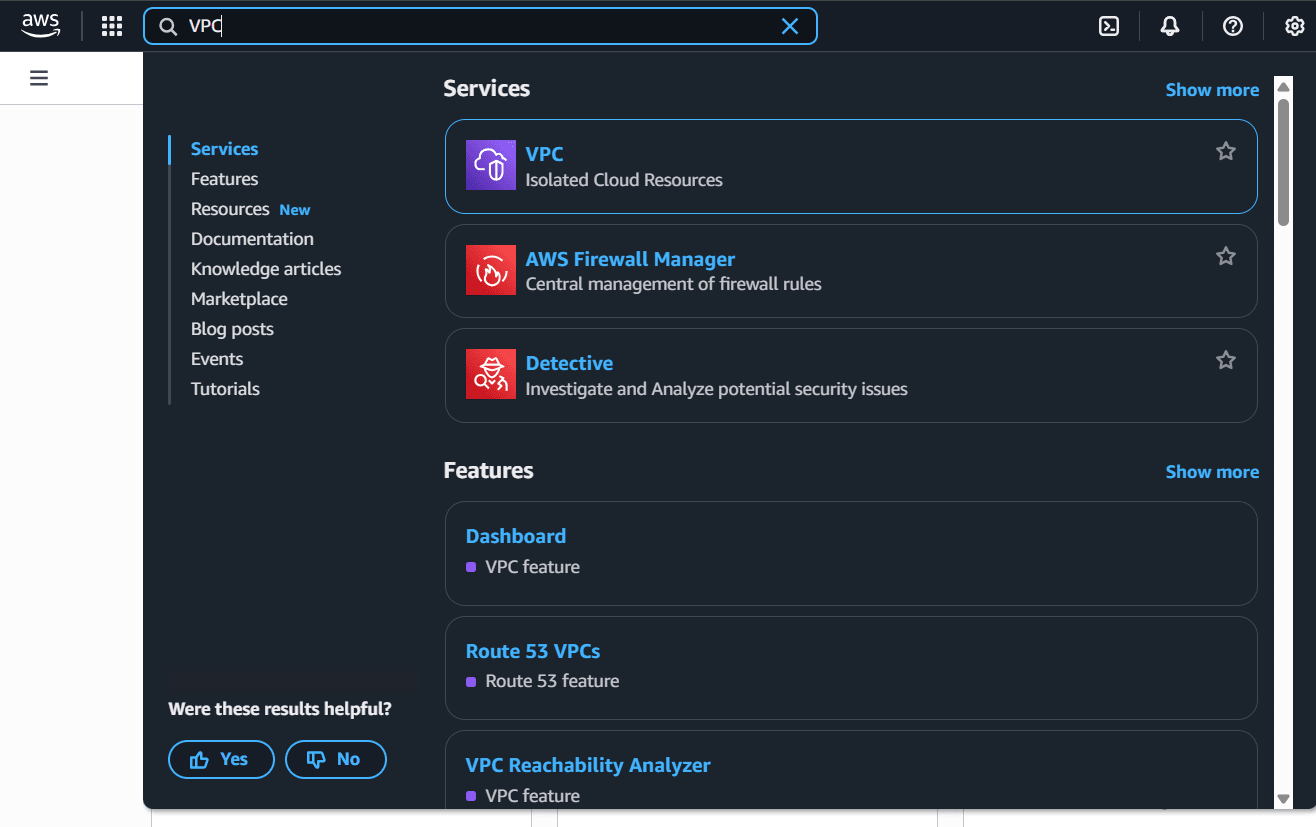

• Navigate to the VPC dashboard in the AWS Management Console.

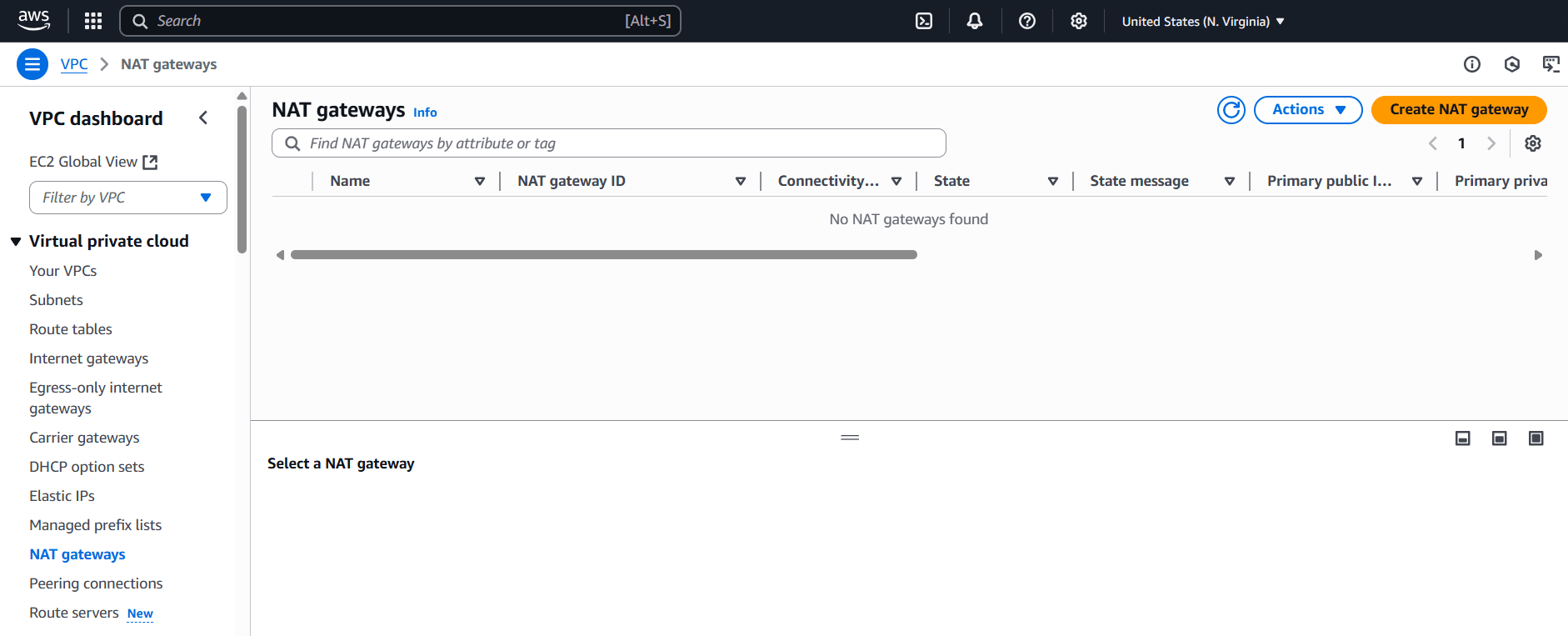

• Under “NAT Gateways,” click “Create NAT Gateway.”

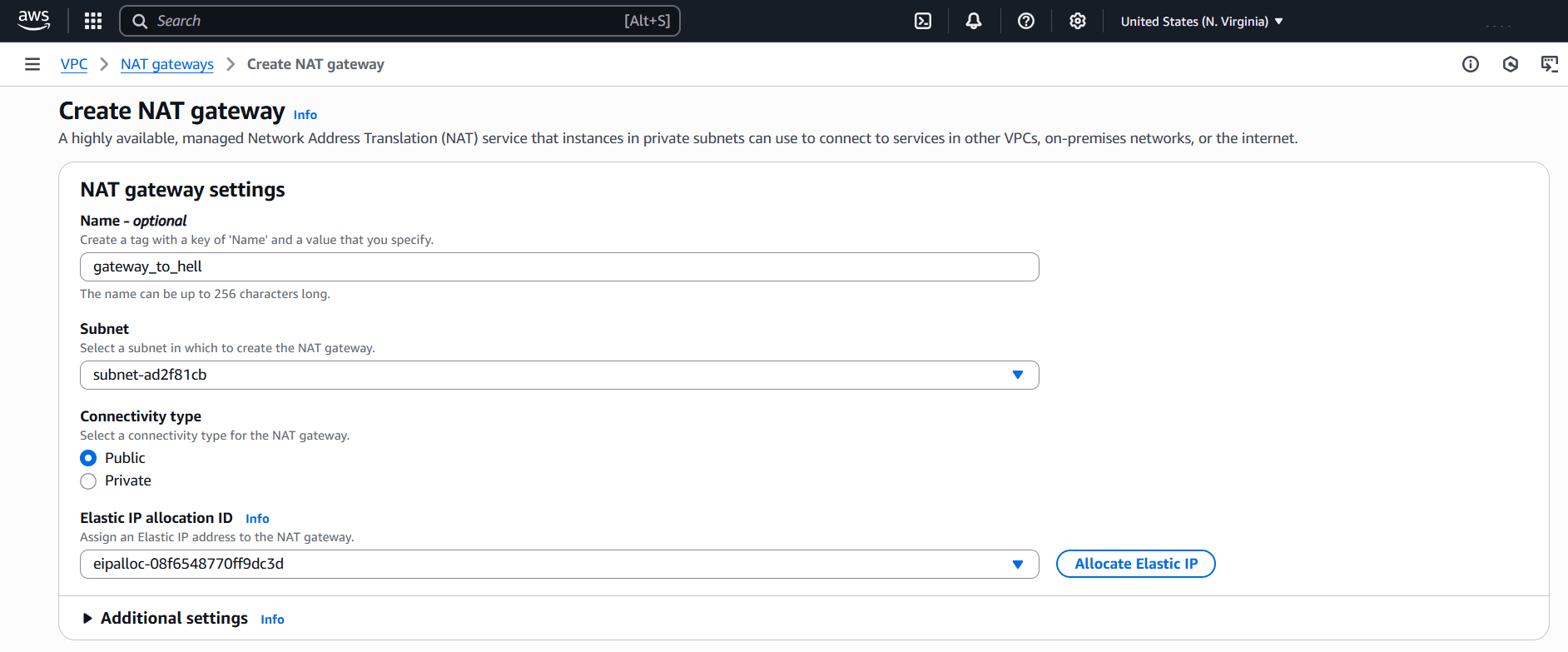

• Select the public subnet where you want to deploy the NAT Gateway. It’s generally recommended to create a NAT Gateway in each Availability Zone where you have private subnets for high availability.

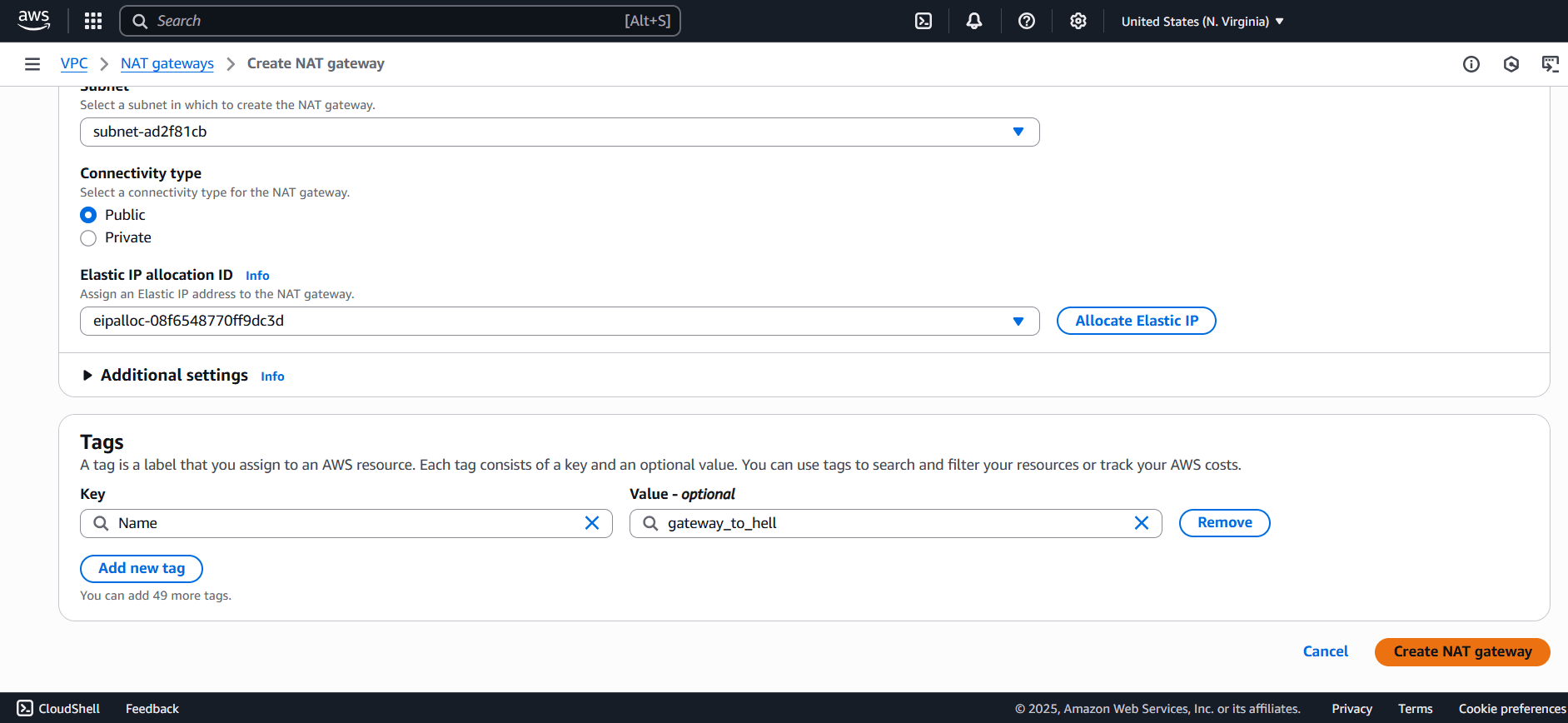

• Choose the Elastic IP address you allocated in the previous step and associate it with the NAT Gateway.

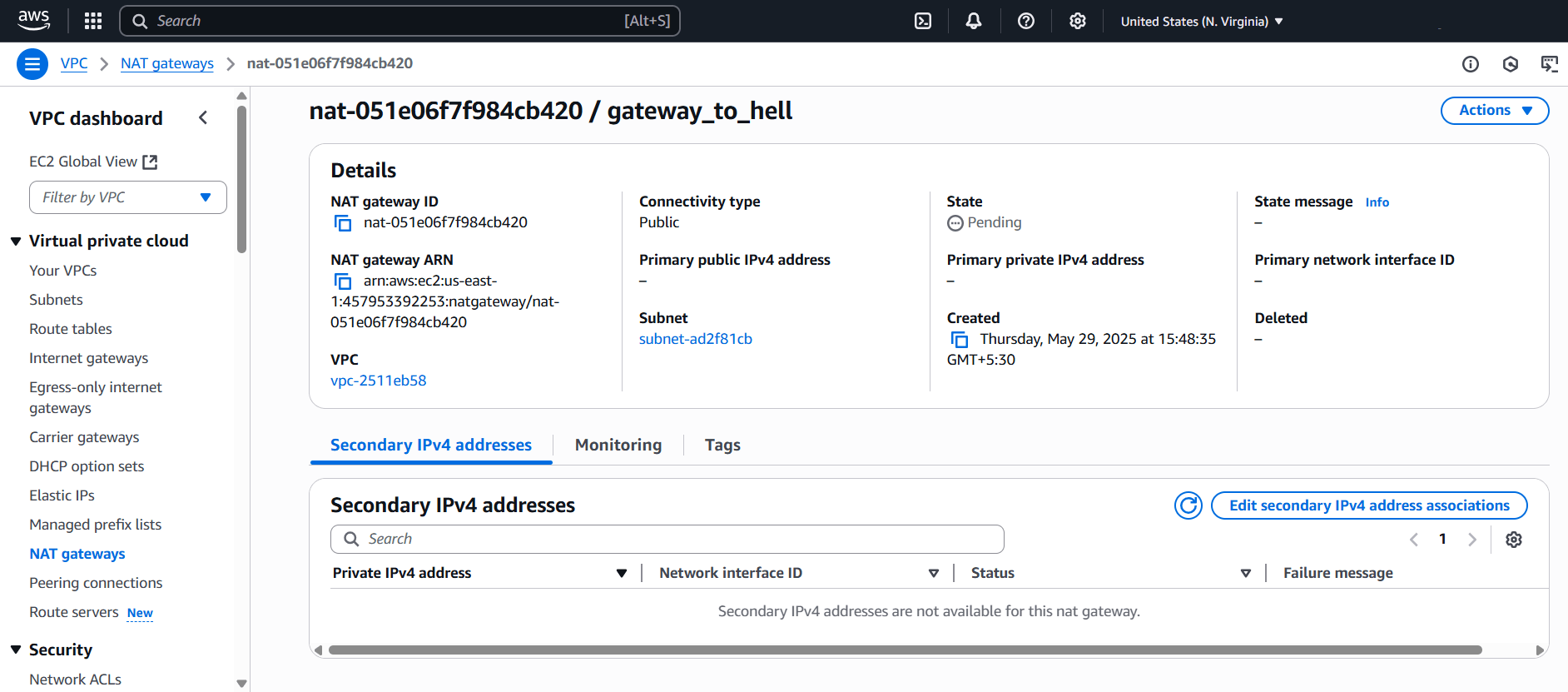

• Click “Create NAT Gateway.” The provisioning process usually takes a few minutes.

4. Update Private Subnet Route Tables: This is the most crucial step. For your private instances to use the NAT Gateway for internet access, you need to configure their route tables.

• Go to “Route Tables” in the VPC dashboard.
• Select the route table associated with your private subnet(s).
• Click on the “Routes” tab and then “Edit routes.”
• Add a new route:
  • Destination: 0.0.0.0/0 (This represents all internet-bound traffic).
  • Target: Select your newly created NAT Gateway.
• Save the changes. This tells all traffic originating from instances in this private subnet and destined for the internet to flow through the NAT Gateway.

5. Configure Security Groups and Network ACLs (NACLs):

• Private Instance Security Groups: Ensure that the security groups associated with your private instances allow outbound traffic on the necessary ports and protocols (e.g., HTTP/S for web access, specific ports for database connections).
• NAT Gateway Security Group (Optional but Recommended): While not strictly required for the NAT Gateway to function, you can associate a security group with it to control inbound and outbound traffic to the NAT Gateway itself. This can provide an extra layer of defense. Ensure it allows traffic from your private subnets and outbound traffic to the internet.
• NACLs: Review your Network Access Control Lists (NACLs) for both your public and private subnets. Ensure they permit the necessary inbound and outbound traffic for the NAT Gateway to function correctly. NACLs are stateless, so you need to explicitly allow both inbound and outbound rules.

By meticulously following these steps, you will successfully deploy and configure an AWS NAT Gateway, providing your private instances with secure and controlled access to external resources.

Conclusion

The AWS NAT Gateway is far more than just a networking component; it’s a strategic tool for building secure, scalable, and resilient cloud environments. Enabling secure outbound communication for private instances while shielding them from inbound internet threats allows organizations to confidently leverage the full power of AWS without compromising security. Embracing the AWS NAT Gateway empowers you to design robust architectures that meet the demands of modern cloud-native applications.

If you want to dive deeper into AWS and build your expertise, you can explore the AWS Solution Architect Associate Training to gain a comprehensive understanding of AWS services, infrastructure, and deployment strategies. For more detailed insights, check out our What is AWS and AWS Tutorial. If you are preparing for an interview, explore our AWS Interview Questions.

FAQs

1. What is a NAT gateway in AWS?

An AWS NAT Gateway is a managed service that allows instances in a private subnet to establish outbound connections to the internet or other AWS services, while simultaneously preventing direct inbound connections from the internet.

2. What is the difference between an internet gateway and NAT gateway?

An Internet Gateway facilitates bidirectional communication between instances in a public subnet and the internet. In contrast, a NAT Gateway is specifically designed for instances in private subnets to enable outbound-only connections to the Internet or public AWS services, without permitting inbound internet-initiated connections.

3. What is the benefit of NAT gateway?

Key benefits of a NAT Gateway include enhanced security through traffic control, high availability and scalability as a managed service, simplified network management, and improved performance for outbound traffic.

4. When should I use a NAT gateway?

A NAT Gateway should be employed when instances within a private subnet require outbound access to the internet (e.g., for software updates, external API calls) or other AWS services with public endpoints, but must remain inaccessible to direct inbound connections from the internet.
